Powder Coating Production Line of Various Sizes Aluminium Profile Customized Coating Hardware Spraying Equipment

Powder Coating Production Line for Aluminum Profiles

Integrated Automatic & Manual Spraying System

This powder coating production line integrates automated electrostatic spraying with supplementary manual coating, providing a flexible and high-precision solution for aluminum profiles of various sizes, cross-sections, and structural complexities.

The hybrid spraying configuration ensures:

• Uniform film thickness

• Enhanced edge and corner coverage

• Precise finishing on intricate geometries

• Stable and repeatable coating quality

The system is designed to balance production efficiency with manual adaptability, making it ideal for both standardized and customized aluminum profile manufacturing.

Spray Booth Specifications

The spray booth is fabricated from high-quality PP (polypropylene), offering:

• Excellent chemical and corrosion resistance

• Long service life

• Easy maintenance and cleaning

The booth design prioritizes both performance and operator safety, incorporating:

• High-efficiency ventilation and air extraction system

• Optimized airflow design for stable powder deposition

• Integrated safety and dust control features

Detailed engineering drawings provide a comprehensive overview of the booth layout, airflow circulation, and safety configuration.

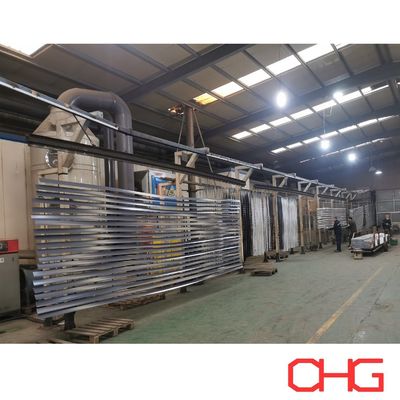

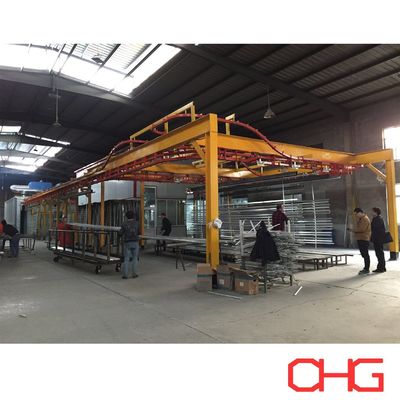

Overhead Conveyor System

An overhead conveyor system transports workpieces smoothly through each processing stage, ensuring:

• Continuous and stable movement

• Optimized floor space utilization

• Improved production throughput

The conveyor layout is engineered to guide parts sequentially through:

• Cleaning

• Pretreatment

• Drying

• Powder application

• Curing

• Cooling

Technical drawings clearly illustrate the conveyor routing and integration with each process zone.

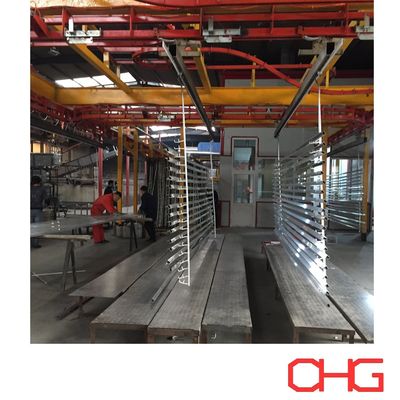

Manual Loading and Unloading Stations

Dedicated manual loading and unloading stations are positioned along the conveyor line to provide operational flexibility.

Key advantages include:

• Accurate positioning of profiles before spraying

• Adaptability to different sizes and shapes

• Improved handling of customized or small-batch products

• Ergonomic workstation design for operator efficiency

The design documentation identifies specific loading/unloading zones, ensuring clarity in system layout and workflow planning.

Powder Coating Process Flow

1. Surface Preparation

Aluminum profiles undergo thorough cleaning to remove oil, dust, and contaminants. Proper surface preparation is critical to ensure strong powder adhesion and consistent coating performance.

2. Pre-Treatment

Profiles are chemically treated to enhance corrosion resistance and improve bonding strength. Typical methods include:

• Chemical cleaning

• Phosphating

• Chromate or chrome-free conversion coating

This stage prepares the aluminum surface for optimal powder adhesion.

3. Drying

After pretreatment, profiles pass through a drying oven to eliminate residual moisture. A completely dry surface ensures stable electrostatic powder application.

4. Electrostatic Powder Application

Powder coating material is electrostatically charged and sprayed onto grounded aluminum profiles using automatic spray guns. Manual touch-up spraying ensures full coverage on complex areas and edges.

5. Powder Curing

The coated profiles enter a curing oven where controlled heating melts and flows the powder particles, forming a smooth and continuous film. Chemical cross-linking during curing results in a durable, impact-resistant, and corrosion-resistant coating.

6. Cooling

Controlled cooling stabilizes the coating film and preserves surface quality and appearance.

7. Quality Inspection

Each finished profile undergoes comprehensive inspection, including:

• Coating thickness measurement

• Surface appearance evaluation

• Adhesion testing

• Overall coating integrity verification

Only products meeting quality standards proceed to final packaging or downstream processing.

System Advantages

By combining advanced automation with manual precision, this powder coating production line delivers:

• High-quality and consistent finishes

• Flexibility for customized aluminum profiles

• Efficient space utilization

• Stable and reliable production performance

Comprehensive design drawings accompany the system, providing transparent guidance for installation, integration, and operation.
