Top PVC/PP Spray Paint Equipment Coating Booth for Powder Coating Production Line Fire Resistance Self-Extinguishing

Our coating booths can be fully customized to meet your specific production needs and facility layout.
We also design and supply complete coating lines tailored to the characteristics of your products, ensuring optimal coating performance and process efficiency.

For a precise quotation, please provide the required booth parameters — detailed technical specifications will greatly assist in our discussion and design proposal.

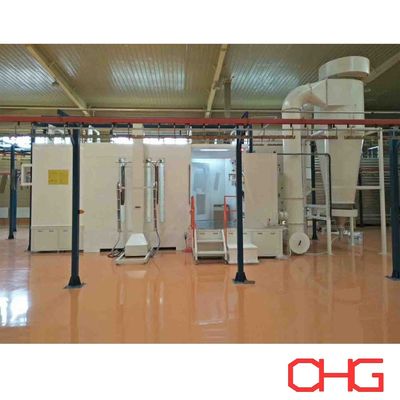

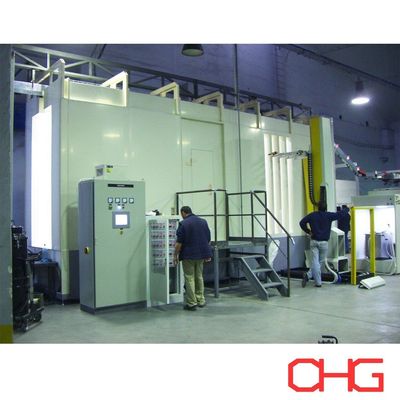

Standard Coating Booth Features

• Modular Construction:
  The booth features a bolted, easy-to-assemble structure for quick installation and convenient maintenance.

• Smooth, Cleanable Surfaces:
  Both the inner and outer chambers are designed for effortless cleaning and powder residue removal.

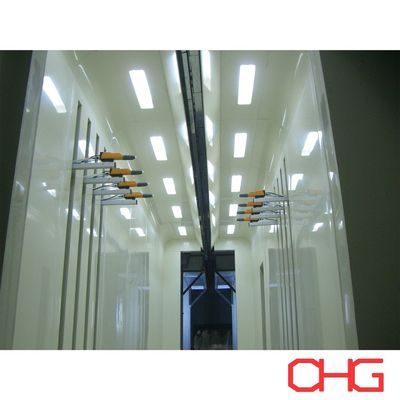

• Automatic Spray Configuration:
  Equipped with two sets of automatic spray guns on each side, ensuring consistent coating coverage.

• Manual Spray Stations:
  Includes two manual spray guns per side, providing flexibility for touch-up operations or complex workpieces.

• Compressed Air Connectivity:
  Quick-connect air fittings are provided on both sides of the booth for convenient operation.

• Powder Containment Design:
  Entrance and exit areas feature sealed buffer zones to prevent powder overspray and maintain a clean working environment.

• High-Intensity Illumination:
  Six groups of explosion-proof LED lamps (“three-proof” type) are installed on the booth ceiling, delivering illumination levels of no less than 300 lux.

• Emergency Safety System:
  An emergency stop button is positioned at the master control station, enabling immediate suspension of the conveyor chain in case of emergency.

• Flexible Customization Options:
  Non-standard sizes and configurations are available to meet special production requirements.
  The external enclosure can also be fabricated by the user according to local site conditions.

The choice of material for a coating booth, such as carbon steel, PVC, PP or stainless steel, can significantly impact the booth's performance, durability, and suitability for specific applications. Here's a comparison of the four materials:

Polyvinyl Chloride (PVC)  Coating Booths	Cost-Effectiveness	PVC is generally more affordable than PP and stainless steel, making it a cost-effective option for some coating booth applications.
	Chemical Resistance	PVC is resistant to certain chemicals, but it may not be as chemically resistant as PP or stainless steel. Careful consideration is needed when selecting PVC for specific coating materials.
	Fire Resistance	PVC is a self-extinguishing material, which can provide an added safety feature in case of fire or accidental ignition.
	Limitations	PVC may have some limitations regarding temperature resistance and exposure to certain chemicals.
Carbon Steel Coating Booth	Strength and Durability	Carbon steel is a strong and durable material, making it suitable for heavy-duty applications and environments where the booth may be subjected to mechanical stresses or impacts.
	Cost-Effectiveness	Carbon steel is generally more affordable than stainless steel, making it a cost-effective option for many applications.
	Corrosion Resistance	While carbon steel can provide decent corrosion resistance with proper coatings and maintenance, it is not as resistant to corrosion as stainless steel.
	Paint Compatibility	Carbon steel is compatible with a wide range of paints and coatings commonly used in various industries.
	Applications	Carbon steel coating booths are commonly used in general industrial coating applications where a moderate level of corrosion resistance is sufficient, and cost considerations are important.
Stainless Steel Coating Booth	Durability	Stainless steel is known for its excellent durability and resistance to corrosion, making it suitable for long-term use in challenging environments.
	High-Temperature Resistance	Stainless steel can withstand high temperatures, making it suitable for applications involving curing or drying processes with elevated temperatures.
	Hygienic Properties	Stainless steel is easy to clean and maintain, making it suitable for industries with strict cleanliness and hygiene requirements.
	Higher Cost	Stainless steel is generally more expensive compared to PP and PVC, which may impact the initial investment cost.
Polypropylene (PP) Coating Booths	Chemical Resistance	PP is highly resistant to a wide range of chemicals, including many solvents and acids. This makes PP coating booths suitable for applications involving aggressive coatings or chemical processes.
	Corrosion Resistance	PP is inherently corrosion-resistant, making it ideal for environments with high humidity, corrosive substances, or when working with acidic coatings.
	Lightweight	PP is a lightweight material, which can be advantageous for booth installation and mobility.
	Limitations	PP has a lower melting point compared to stainless steel, so it may not be suitable for applications with high temperatures or exposure to intense heat.
