Automatic Professional Coating Machine for Structural Parts Customized Wet Painting Line

Structural Parts Liquid Painting Line with Customizable Automated Coating System

This production line is purpose-built for coating carbon steel structural elements and provides two application methods to suit different requirements.

Application Options

• Immersion painting with angled basket design

Material Handling

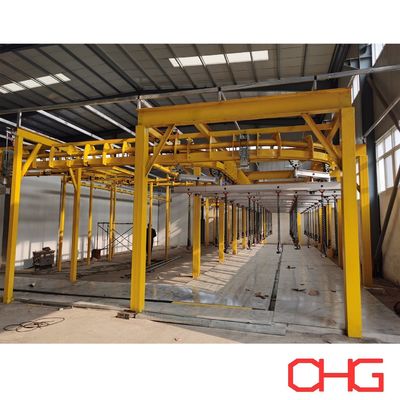

• Power & free overhead conveyor system

• Forklift-supported manual loading and unloading

Main Characteristics

• Specially developed for medium to large structural parts

• Tailored for carbon steel surface treatment and coating

• Flexible process layout enabling multiple coating approaches

Core Equipment

• Motor-driven conveyor with adjustable speed range

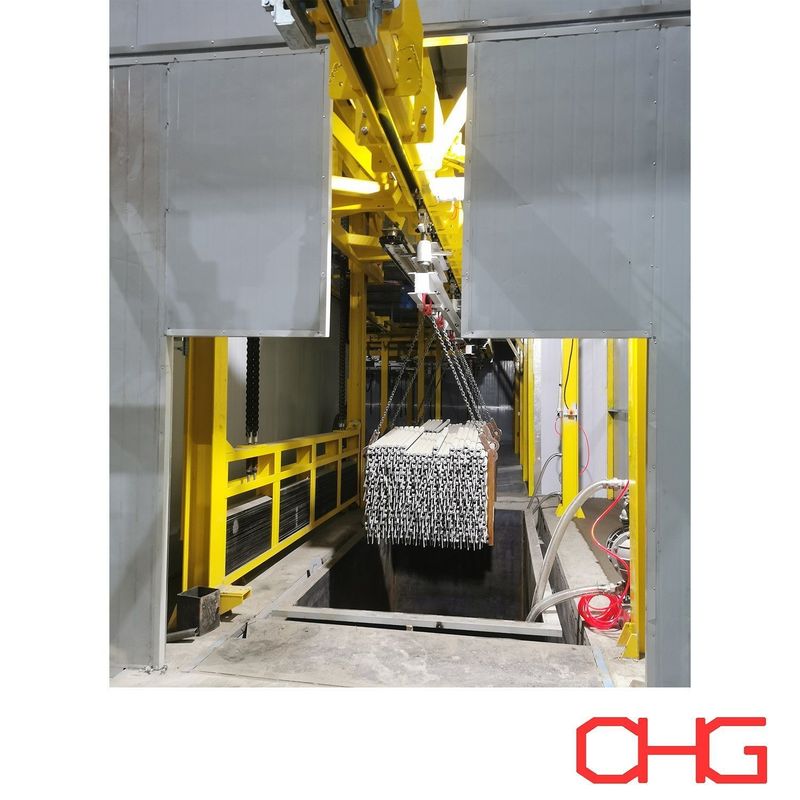

• 45° angled immersion unit ensuring full surface coverage

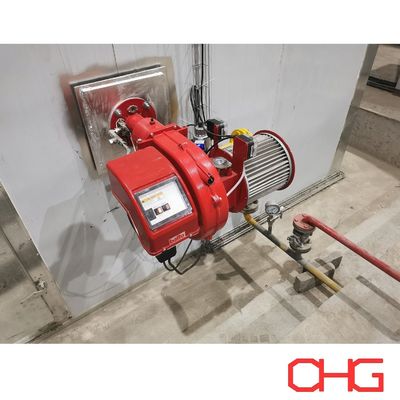

• Independent drying and curing sections

Operating Specifications

• Maximum load: up to 2000 kg per carrier

• Line speed adjustable between 0.5–3.0 m/min

• Customizable dipping tank size

Process Workflow
Forklift-assisted manual loading → Basket dipping & coating (approx. 6 min) → Draining/paint dripping (about 90 min) → Drying (48 min at 60–80°C) → Natural cooling (around 6 min) → Forklift-assisted manual unloading

Benefits:

Invest in our cutting-edge Carbon Steel Structural Parts Liquid Dipping Coating Line for unrivaled coating results. Experience the benefits of precise immersion, enhanced productivity, and superior finish quality. Elevate your coating capabilities with our advanced solution today.


Feel free to contact us to get your exclusive design proposal. We can also customize other types of coating production line based on product characteristics.
