Galvanized Sheet Substrate Customized Automobile Oil Filter Housing Powder Coating Line with PP Spray Booth

Powder Coating Production Line for Automotive Oil Filter Housings

This production line is specifically engineered for the powder coating of automotive oil filter housings made from galvanized sheet metal. The system adopts automatic electrostatic powder spraying, and the spray booth is constructed from high-quality PP (polypropylene) for excellent corrosion resistance and extended service life. Material conveying is handled by a monorail floor conveyor, ensuring stable and efficient part movement throughout the production process.

To further enhance coating quality and operational efficiency, the line integrates a new anti-static powder spray booth and recovery system, and features an upgraded curing oven to meet the performance demands of powder coating galvanized components.

Key Features

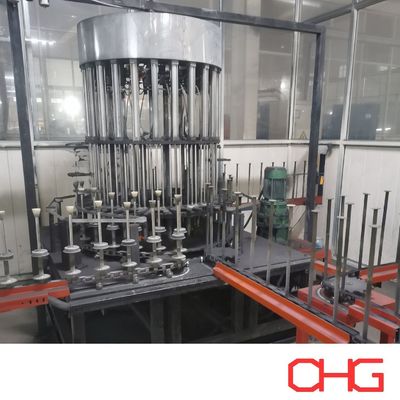

Customized Ground Chain (Floor) Conveyor System

The ground chain conveyor serves as the main transport mechanism for the filter housings, offering:

• Smooth, continuous, and controlled movement through all process stages

• Stable handling tailored to the shape and size of the oil filter housings

• Adjustable fixture designs to accommodate various housing dimensions
  This robust system ensures reliable, consistent material flow and supports high-volume production.

Comprehensive Pretreatment Process

Before powder application, the galvanized housings undergo a complete pretreatment sequence that may include:

• Cleaning

• Degreasing

• Rinsing

• Conversion coating (optional, depending on client requirements)

This ensures optimal surface preparation, enhancing coating adhesion, corrosion resistance, and overall coating durability.

Multi-Stage Coating Capability

For applications requiring multiple coating layers—such as primer, base coat, and top coat—the conveyor system enables seamless transfer between stages. This ensures:

• Uniform powder application

• High coating consistency

• Superior aesthetic and protective performance

Advanced PP Powder Spray Booths

The production line incorporates high-efficiency powder spray booths made of corrosion-resistant PP material. Features include:

• Automatic powder guns for precise and even powder distribution

• Optional manual touch-up stations

• Smooth airflow design to minimize contamination and overspray

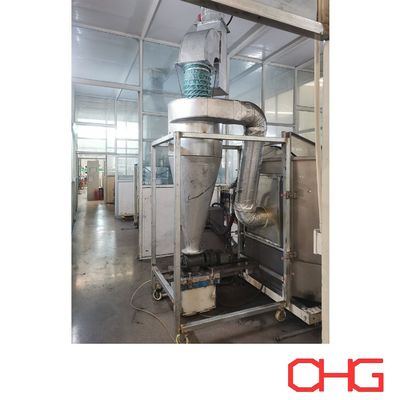

Powder Recirculation & Recovery System

To maximize material utilization and reduce operating costs, the system includes:

• Anti-static powder recovery equipment

• Cyclone or filter-based powder separation

• Efficient recirculation to reuse recovered powder

This setup significantly improves powder usage efficiency and reduces waste.

Upgraded Curing Ovens

After the powder is applied, parts enter the curing oven where:

• Controlled heating ensures proper melting, leveling, and crosslinking

• The final film achieves excellent hardness, adhesion, and corrosion resistance

• Oven parameters are optimized for galvanized substrates

The upgraded oven design ensures stable temperature distribution and efficient curing results.

Automation & Intelligent Control

Integrated automation systems enable precise control over:

• Conveyor speed

• Powder output and spray patterns

• Booth airflow management

• Oven temperature and dwell times

These controls ensure consistent, repeatable coating quality and simplify production management.

Reliable, Efficient, and High-Quality Coating for Automotive Filter Housings

By combining a durable ground chain conveyor with advanced powder coating technologies, this production line delivers:

• Uniform, high-performance coatings

• Enhanced corrosion protection

• Reduced powder waste

• Stable and continuous production efficiency

This system is ideal for manufacturers requiring consistent, high-quality coating performance for automotive oil filter housing components.
